Vertical Laminar Flow CabinetBKCB-V500
Description:
ADVANTAGE
BKCB-V500
BKCB-V600

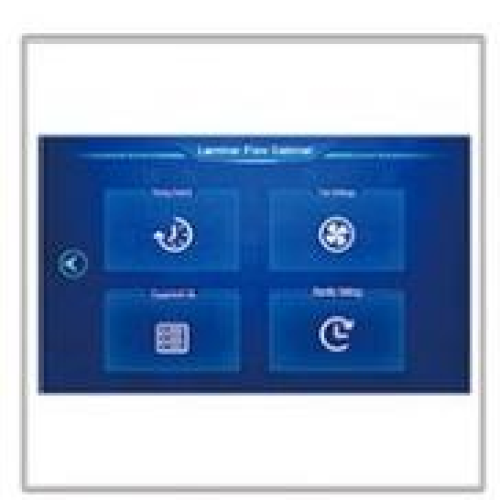

7-inch Color
Touch Screen Airlow Level
The Side
Waterproof Window

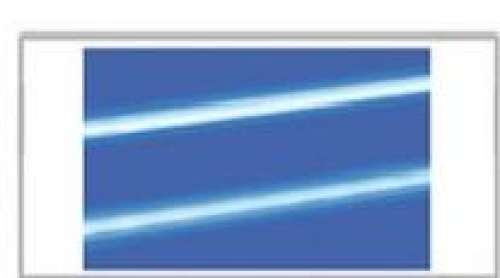

UV Lamp
1.The cabinet is designed with a vertical surface,the operation perspective is wide and more humanized.
2.Made of highquality cold rolled steel plate material,welding structure,surface electrostatic spraying,enhancing the stability of the cabinet.
3.Equipped with initial effect filter,which can preliminarily filter large particulate matter,thus improving the service life of the high efficiency filter.
4.Work surface is made of high quality 304 stainless steel material,beautiful and corrosion resistance.
5.The working area adopts four sides (left and right sides,rear,bottom)positive pressure surround design,effectively protect product safety.
6.The frontwindow adopts 5mm thick tempered glass to better protect the safety of personnel and experiments.
7.The side windows are madeof 5mm thicktoughened glass to enhance the lighting permeability of the operation area. 8.The hidden weight structure,manual front window,realizing freely adjusting the opening height of the front window.
9.7-inch color touchscreen,real-time display of running status (air flow direction,air velocity,machine running time, UV lamp running time,high efficiency fiter running time,highefficiency filter running resistance,operating area
temperature and humidity,clock display)at a glance.
10.With the function of appointment timing,it can automatically set the time of starting and shutting down the laminar flow cabinet and the disinfection time of ultraviolet lamp.
11.With a key disinfection function,convenient and fast,greatly saving the work time and improving the work efficiency. 12.Perfect alarm system:
(1)The front window is not set height alarm:the front window is set height of200mm,when the front window is not in the height position and the bottom position,sound alarm will be issued.
(2)Ultra-high filter pressure alarm:when the filter resistance increases,sound alarm will be issued.
(3)Filter failure replacementalarm:when the filter service life expires,there will be a fiter replacement sound alarm. 13.Safety interlock protection:
(1)Fan and front window interlock:when the frontwindowdoor falls to the bottom,the fan will automatically close.
(2)The ultraviolet lamp,the front window and the lamp interlock:the front window door falls to the bottom
and the lamp is not opened,the ultraviolet lamp can be opened to avoid the misoperation of the ultraviolet lamp causing harm to the human body.
