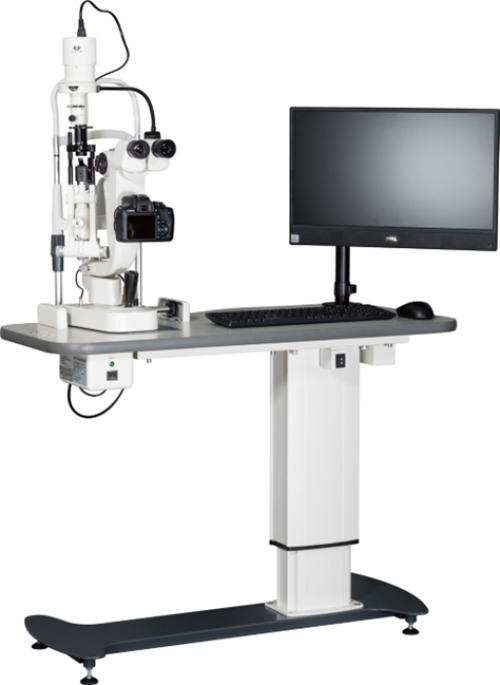

YZ5T Slit Lamp Image System
Description:

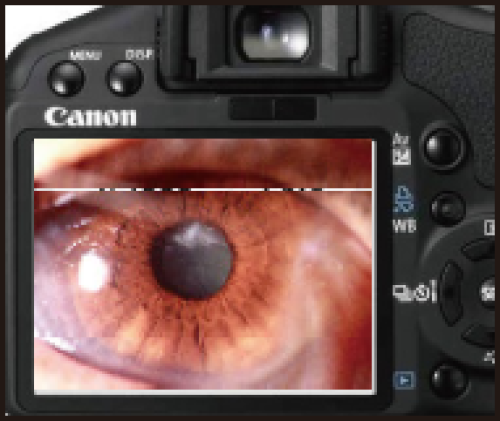

DSLR camera: used as the professional image collecting medium, is the best choice for the ophthalmic shooting for its sensitive capture of the light, the colour and the complete adjusting functions.

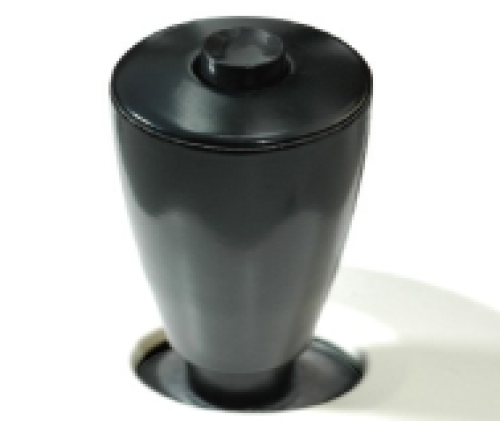

Photograph button: The handle shooting device is located at the top of the control handle, and the clear picture is captured immediately by clicking the diseased part.

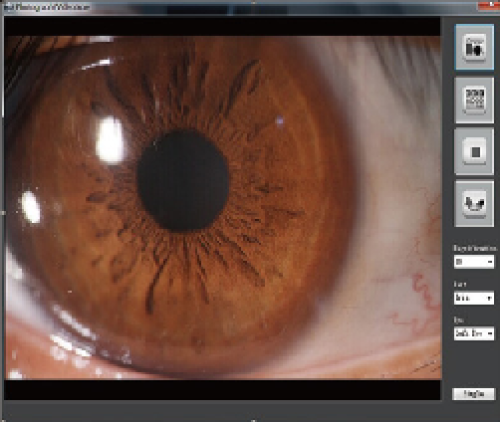

Real time dynamic display: High-resolution image Prominent performance in imaging processing DICOM 3.0 interface.

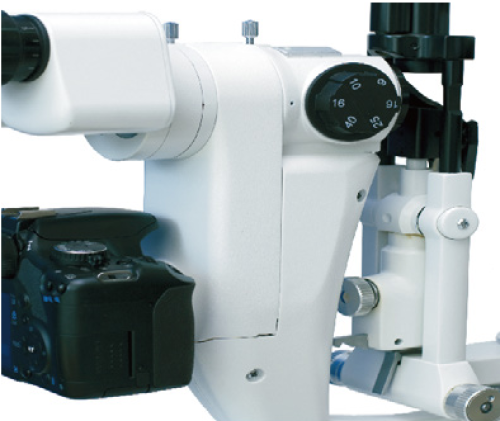

The optical system: is specially designed for front section photography, with a wide field of view.clear and bright vision.and simple and smooth shape.
Humanized digital system design
YZ5T slit-lamp image system has strong function and is convenient to use. It is a good helper for ocular clinical diagnosis. The microscope light path adopts the intersection Angle parallel design, good three-dimensional sense, wide field of vision; Optical lens made of German optical glass, reduce optical distortion, clarity and depth of field significantly improved; All lenses are treated by multi-layer anti-reflection, moisture-proof and anti-mold coating, which always maintains good optical effect Imported light source, small heat, high brightness, uniform spot Background lighting system in dark room observation, shooting effect is especially obvious.
|
Objective Magnification |
Five-step Drum Magnification |
|
Eye Piece |
12.5 |
|
Magnifications (Field of view) |
6.3(33mm) 10(22.5mm) 16(14mm) 25(08.8mm) 40x(05.5mm) |
|
Pupil Distance |
55mm - 75mm |
|
Diopter Adjustment |
-5D- +3D |
|
Slit Width |
0mm - 14mm adjustable(slit is round when the slit width is 14mm) |
|
Slit Height |
1mm - 14mm adjustable |
|
Diameter of Light Spot |
14mm,p10mm,p5mm,p2mm,p1mm,0.2mm |
|
Slit Angle |
0° - 180° adjustable |
|
Slit Inclination |
5°, 10°, 15°, 20° four steps |
|
Filers |
Heat Absorption, Grey, Redfree, Cobalt blue |
|
Illumination Source |
12V30W halogen bulb |
|
Collecting Medium |
Digital Single Lens Reflex |
|
Illumination Type of Taking Picture |
Background Illumination |
|
Power Supply |
AC110V/220V±10%, 50Hz/60Hz |
|
Optional Accessories |
Applanation Tonometer,Measuring EyePiece,Trihedron Lens,Gonioscope,Funduscope,Aspheric Lens |
|
Dynamic Display |
LCD and Computer Screen Rael-time Dynamic Display |
|
Packing Volume |
670mmx620mmx490mm |
|
Total Weight |
23Kg(Table,Tabletop and Computer Not Included) |
|
Processing Functions |
Length ,Angle ,Area, Measuring ,Arrowhead, Word adding, Image processing |
|
Table (optional) |
YT2GB |
