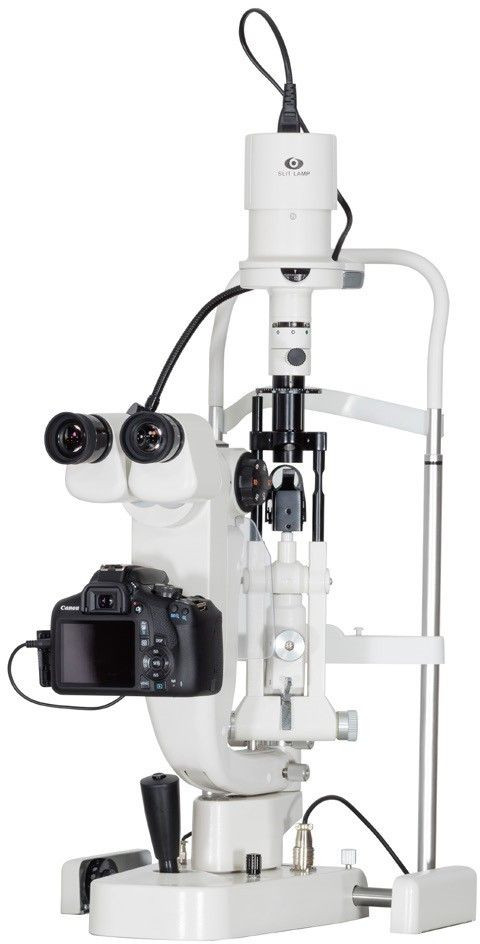

YZ5F Slit Lamp Microscope
Description:
Converging stereoscope microscope provides clear images. Schott optics from Germany reduce optical distortion, increase clarity, and enhance depth of focus. All the optical lenses are moisture-proof, mildew-proof, and anti-reflection treated. Three-step magnifications (10X, 16X, 25.6X) can be changed by a lever, and 10X & 16X eyepieces are available.
All the joints can be connected by accessories with international standards.
|
Objective Magnification |
two steps magnification |
|
Eye Piece |
10x and 16x |
|
Magnifications (Field of view) |
6.3(33mm) 10(22.5mm) 16(14mm) 25(08.8mm) 40x(05.5mm) |
|
Pupil Distance |
55mm - 75mm |
|
Diopter Adjustment |
-5D- +3D |
|
Slit Width |
0mm - 14mm adjustable(slit is round when the slit width is 14mm) |
|
Slit Height |
1mm - 14mm adjustable |
|
Diameter of Light Spot |
14mm,p10mm,p5mm,p2mm,p1mm,0.2mm |
|
Slit Angle |
0° - 180° adjustable |
|
Slit Inclination |
5°, 10°, 15°, 20° four steps |
|
Filers |
Heat Absorption, Grey, Redfree, Cobalt blue |
|
Illumination Source |
12V30W halogen bulb |
|
Collecting Medium |
Digital Single Lens Reflex |
|
Illumination Type of Taking Picture |
Background Illumination |
|
Power Supply |
AC110V/220V±10%, 50Hz/60Hz |
|
Optional Accessories |
Applanation Tonometer,Measuring EyePiece,Trihedron Lens,Gonioscope,Funduscope,Aspheric Lens |
|
Dynamic Display |
LCD and Computer Screen Rael-time Dynamic Display |
|
Packing Volume |
670mmx620mmx490mm |
|
Total Weight |
23Kg(Table,Tabletop and Computer Not Included) |
|
Processing Functions |
Length ,Angle ,Area, Measuring ,Arrowhead, Word adding, Image processing |
|
Table (optional) |
R-type,T-type Applanation Tonometer, Measuring EyePiece, Trihedron Lens, Gonioscope, Funduscope,Aspheric Lens |
