Mini PCR Workstation
Description:
INTRODUCTIONS
The Mini PCR Workstation is the worlds exclusive nucleic acid detection workstation,specially developed for
fever clinics and small clinical laboratories.Integrate traditional PCR laboratory functions into one device.Allow more small laboratories to have PCR detection capabilities.
APPLICATION
It is suitable for rapid nucleic acid detection in the fever clinic and emergency department of hospital,other small
clinical laboratories.
FEATURES
1.Global exclusive.
2.Small dimension,save space,economical and convenient. 3.Automatic air speed adjustable with filter block.
4.With memory function in case of power-failure.
5.Interlock function:UV lamp and front window;UV lamp and blower,fluorescent lamp;Blower and front window. 6.Audio and visual alarm:Filter replacement,window over height,abnormal air flow velocity etc.
7.Time reserve function:This can set the UV lamp and fan working time.

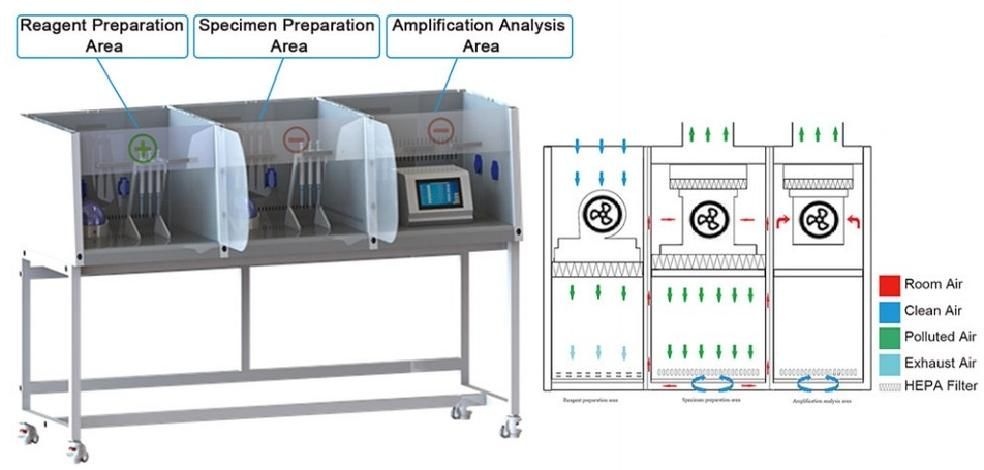

Reagent Preparation Area:
Positive pressure,vertical laminar flow design,equipped with primary fiter and HEPA filter,which can protect the
reagent preparation from external pollution and protect the reagent.
Specimen Preparation Area:
Negative pressure;the air inlet is through the front window glass door,the bottom of the operation area is returned to the air,and the top is exhausted;the upper and lower two HEPA filters are equipped to protect personnel from harmful aerosol infection and protect samples from external pollution.
Amplification Analysis Area:
Negative pressure,the air inlet is through the front window glass door,the bottom of the operation area is returned to the air,and the top is exhausted,and the HEPA filter can protect both the personnel and the environment.
